Canyon CC 76- Vitreous China Rimless One-Piece Elongated Toilet with Skirted Trapway Floor Outlet, 1.28 gpf (4.8 lpf) with Seat-TYNIE BATH

HOME / PRODUCTS / One Piece Toilets

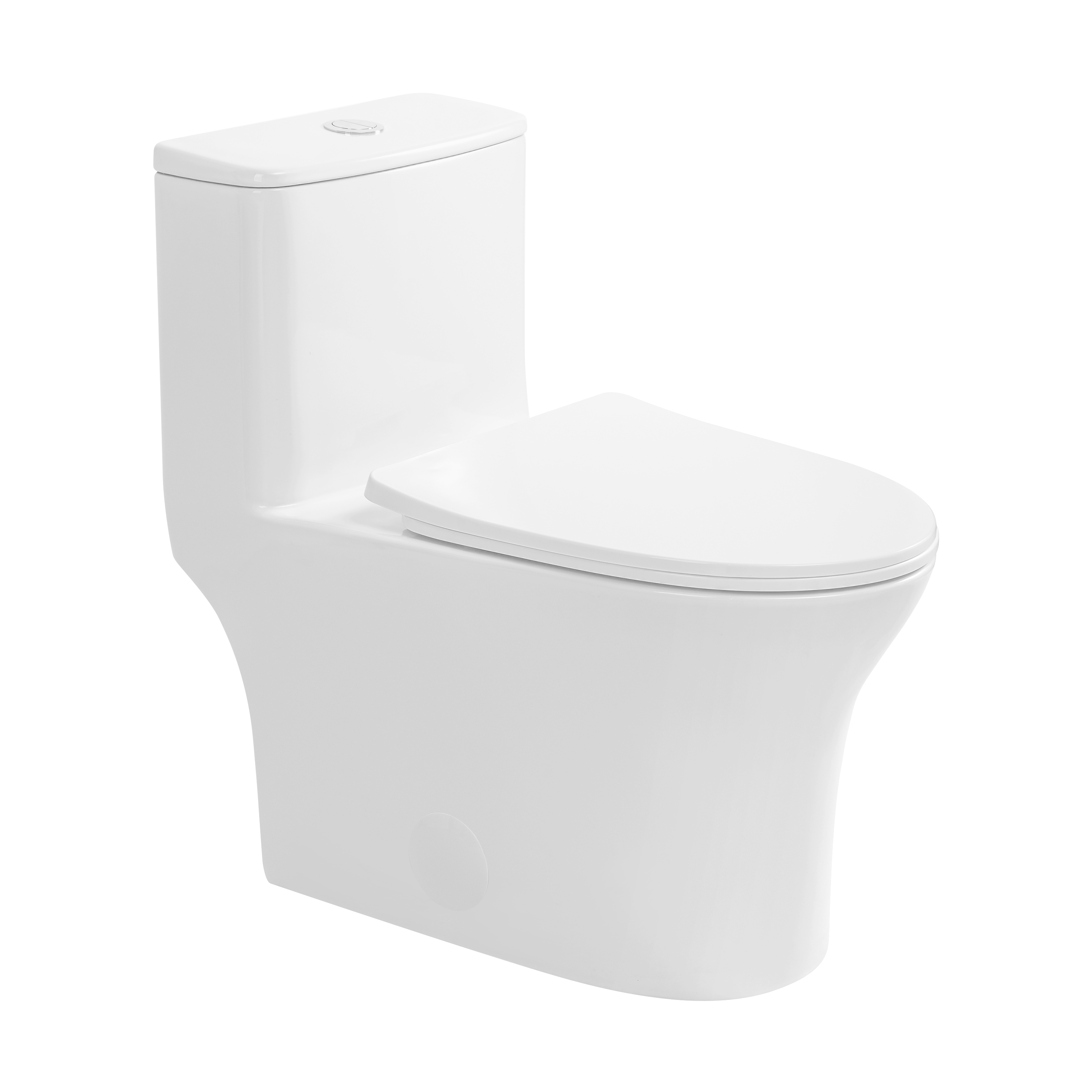

Canyon CC 76- Vitreous China Rimless One-Piece Elongated Toilet with Skirted Trapway Floor Outlet, 1.28 gpf (4.8 lpf) with Seat

REF.CC76

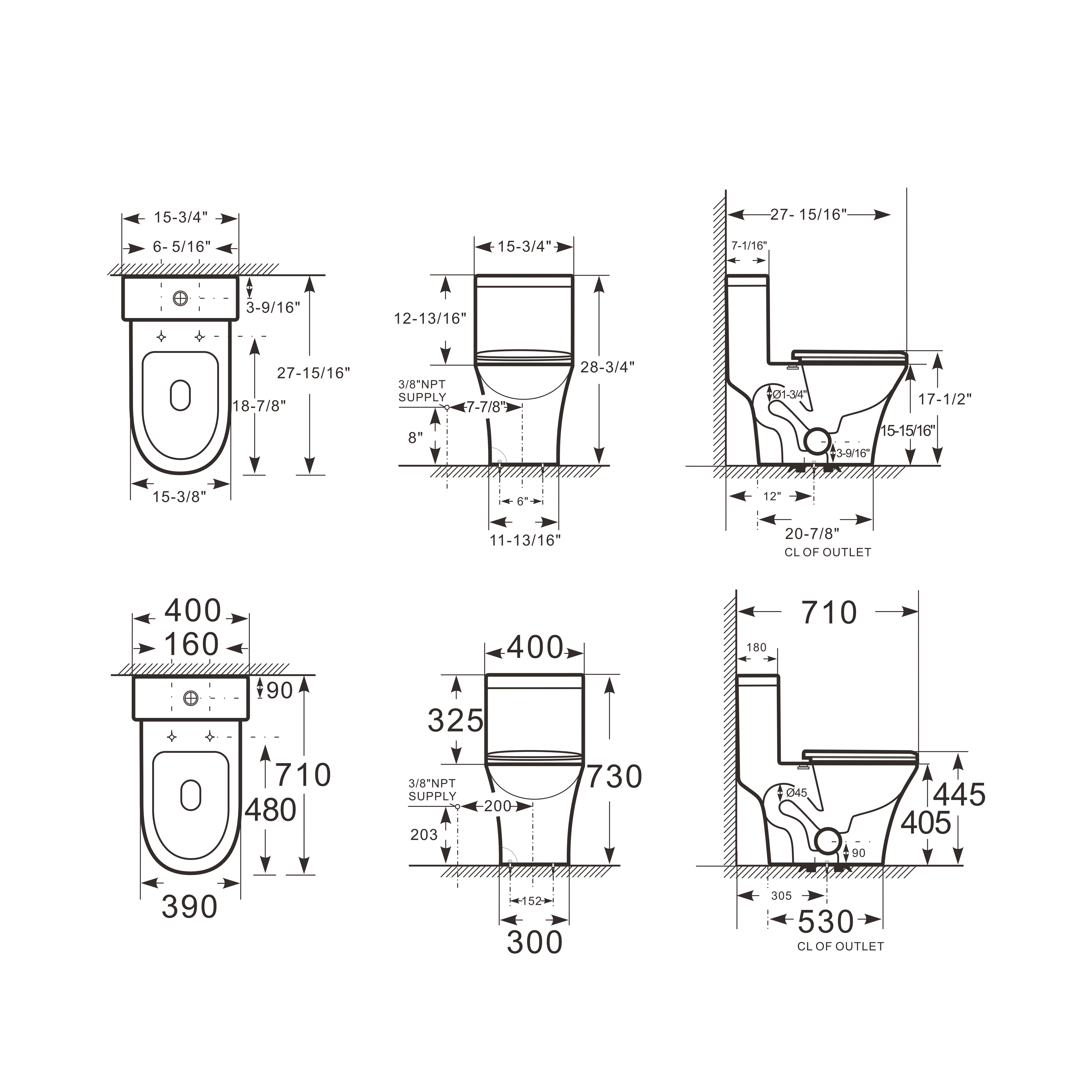

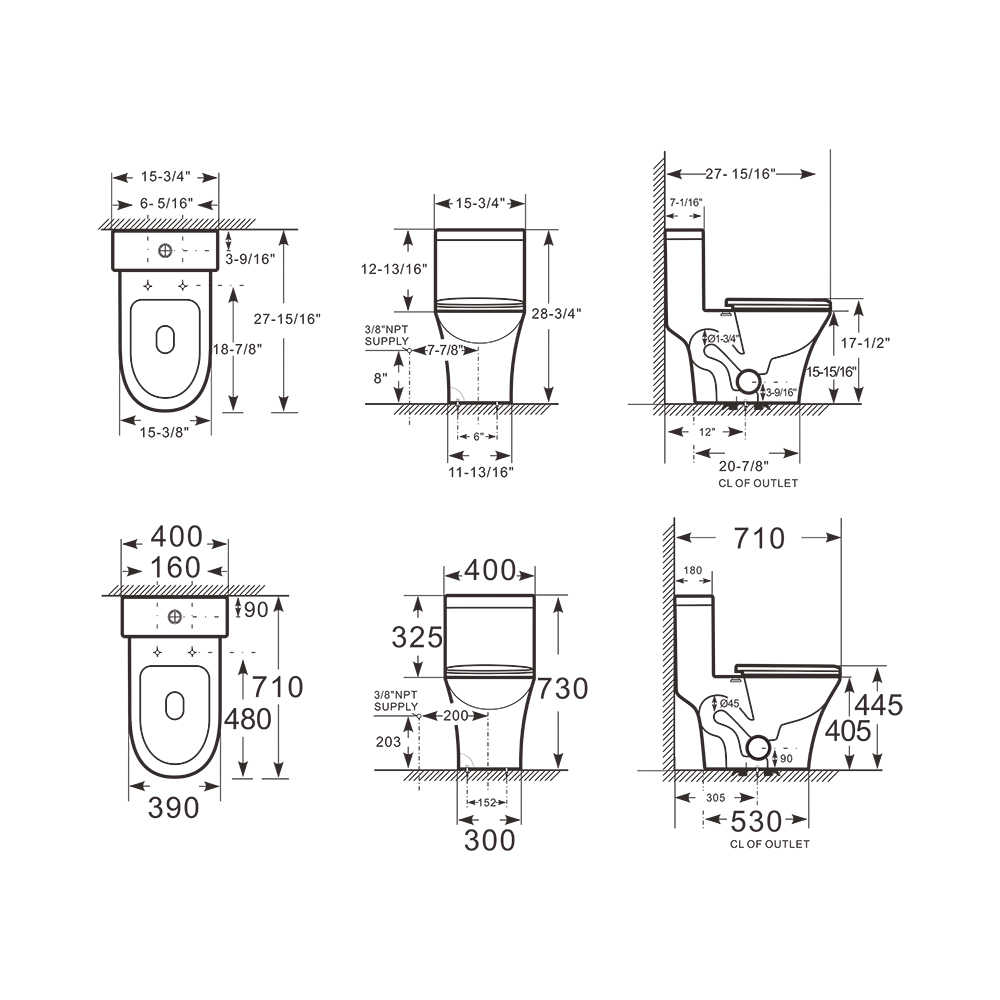

DIMENSIONS(Unit Inches)

27-15/16'' x 15-3/4'' x 28-3/4''

DIMENSIONS(Unit: mm)

710x390x730mm

CERTIFICATIONS & APPROVALS

TECHNOLOGIES AND HIGHLIGHTS

RIM

RIM FLUSH

EASY TO INSTALL UNINSTALL LID

SOFT CLOSE LID

HIGH QUALITY GLAZE

ENHANCED HYGIENE AND EASE OF CLEANING

ELONGATED SEAT

Color :

GLOSS WHITE

Add to Enquiry

SPECIFICATIONS

FEATURES

Flushing system:Rimless Washdown Flush, Dual flush

Nominal water consumption:1.28 GPF Full flush/ 1.08 GPF Half flush

Material:Vitreous china

Rough-in:S-Trap 12’’

Flush button type:Buttons

Bowl Shape:Elongated

Seat height:16-7/16’’

Lid Shape:Elongated,  PP , soft close, quick release

Trapway size:1-3/4’’

FEATURES

Flushing system:Rimless Washdown Flush, Dual flush

Nominal water consumption:4.8L Full flush/ 4.1L Half flush

Material:Vitreous china

Rough-in:S-Trap 305mm

Flush button type:Buttons

Bowl Shape:Elongated

Seat height:417mm

Lid Shape:Elongated, PP, soft close, quick release

Trapway size:45mm

DOCUMENTS

Specification Sheet (inches) Specification Sheet (mm)

COMPATIBLE PRODUCTS

Thermoplastic or PP Soft Close Quick-Release, Easy-Clean lid for Canyon 76 Toilets

Dual Flush Buttons for Cascade Toilet

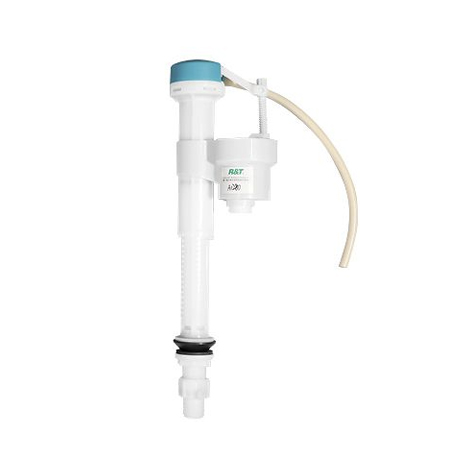

R&T INFILL VALVE for Canyon Toilet

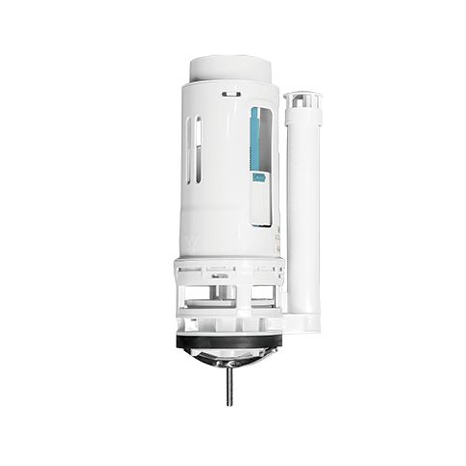

R&T FLUSH VALVE, DUAL FLUSH for Canyon Toilet
